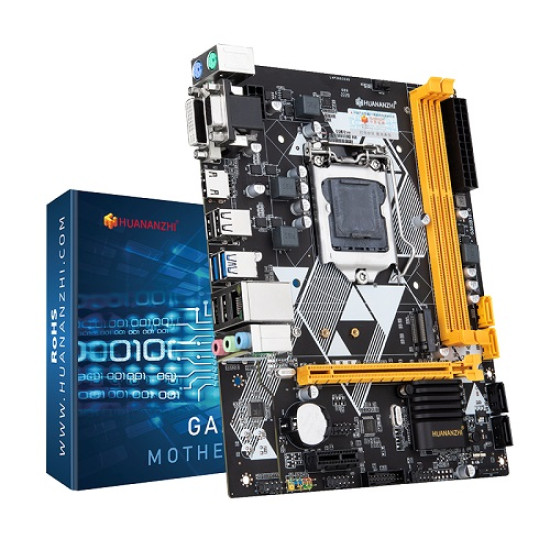

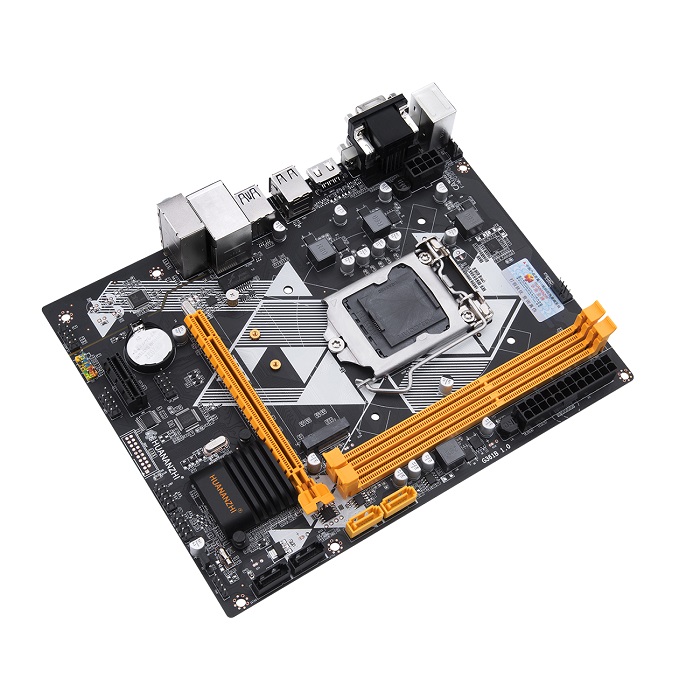

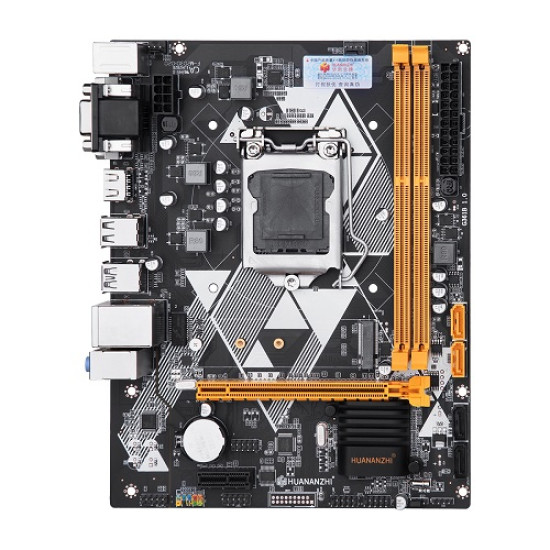

HUANANZHI H81 Intel Motherboard

HUANANZHI H81 Intel Motherboard Price in BD

HUANANZHI H81 Motherboard is a powerful and efficient motherboard designed to support Intel LGA1150 processors. Equipped with the Intel H81 chipset, this motherboard delivers excellent compatibility and performance for both office and personal computing needs. With dual-channel DDR3 memory support, multiple expansion slots, and high-speed connectivity, it is a well-rounded choice for users looking for stability and efficiency.

Special Features:

• Processor Compatibility: Supports Intel LGA1150 processors for stable and efficient performance.
• Memory Support: Dual-channel DDR3 1600/1333MHz, with a maximum capacity of 16GB.
• Storage Options: Features 2x SATA 3.0 (6Gbps), 2x SATA 2.0 (3Gbps), and 1x M.2 2280 PCIe X4 (20Gbps) for high-speed data transfer.
• Expansion Slots: PCIe 3.0 x16 for graphics cards and PCIe 2.0 x1 for additional expansion needs.
• Audio Performance: 7.1-channel HD sound card for immersive audio quality.

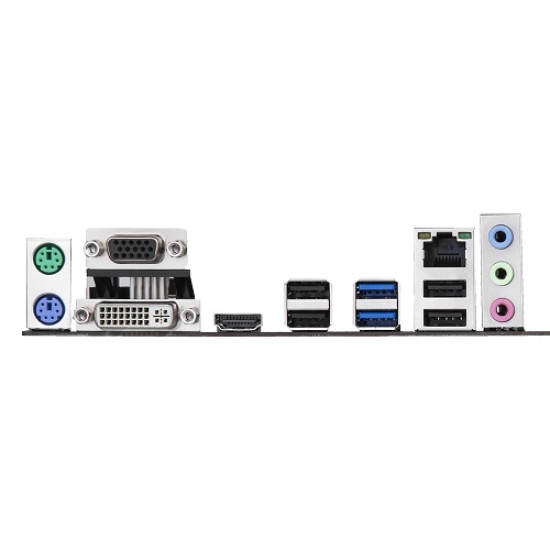

• Connectivity: Includes 4x USB 2.0, 2x USB 3.0, VGA, HDMI, and DVI for multiple display options.
• Networking: Integrated 100M network card for stable internet connectivity.
• Cooling System: 1x CPU fan pin and 1x system fan pin for effective heat management.
• Power Efficiency: 3-phase power supply for stable energy distribution.
• BIOS & OS Support: Features AMI UEFI BIOS and supports Windows 7, 10, and 11 for easy system optimization.

FAQ

1. What processors are compatible with the HUANANZHI H81 Motherboard?

It supports Intel LGA1150 processors, making it compatible with a range of Intel CPUs.

2. What is the maximum memory capacity supported?

This motherboard supports up to 16GB of DDR3 RAM with speeds of 1600MHz and 1333MHz.

3. Does this motherboard have an M.2 slot?

Yes, it features one M.2 2280 PCIEX4 2.0 slot with a 20Gbps speed for high-speed SSD storage.

4. Can I use dual monitors with this motherboard?

Yes, it includes VGA, HDMI, and DVI ports, allowing for multiple display connections.

5. Does this motherboard have built-in Wi-Fi?

No, it does not come with built-in Wi-Fi. However, you can install a Wi-Fi adapter using the PCIe slot or a USB Wi-Fi adapter.

6. How many USB ports are available?

It has four USB 2.0 ports and two USB 3.0 ports on the rear panel, along with additional front panel USB support.
