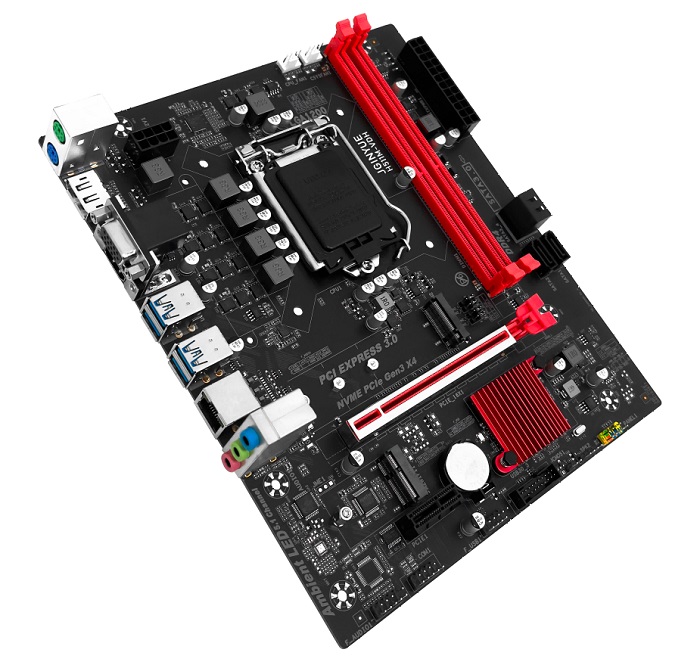

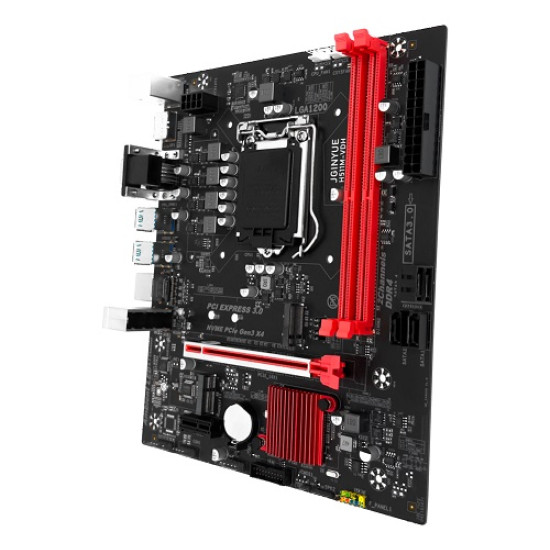

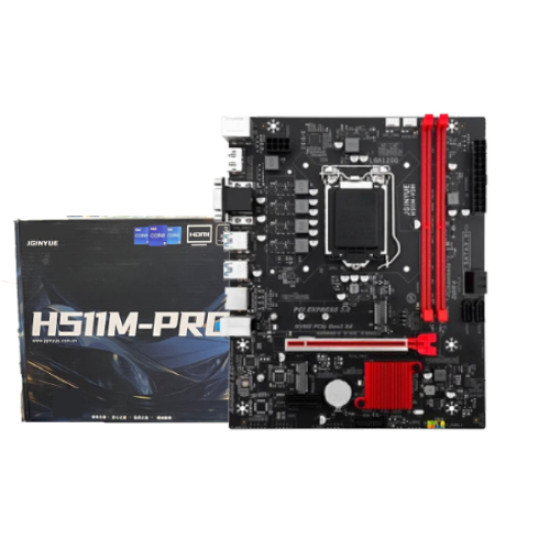

JGINYUE H511M-VDH Intel Motherboard

JGINYUE H511M-VDH Intel Motherboard Price in Bangladesh

The JGINYUE H511M-VDH M-ATX motherboard is a powerful and reliable choice for users seeking high performance and efficiency. It supports Intel 10th and 11th generation LGA1200 processors, ensuring compatibility with modern CPUs. With two DDR4 slots, it allows up to 64GB of dual-channel memory for smooth multitasking.

For storage, the M.2 NVMe/SATA dual-protocol slot offers fast data transfer speeds, while multiple USB 3.0 ports ensure seamless connectivity. Display options include HDMI, VGA, and DP interfaces, supporting various monitor setups. It also features one PCIe X16 slot for graphics cards, a WiFi expansion slot, and a Realtek 8111H network card for stable internet access.

Designed for durability, the motherboard includes a 5-phase power supply system, 24-pin + 8-pin power connectors, and two 4-pin fan slots for efficient cooling. Its compact M-ATX form factor fits various PC cases, making it an ideal choice for gaming, workstations, and general-purpose builds. Compatible with Windows 7 and 10, the H511M-VDH is a versatile and efficient motherboard for modern computing needs.

Why Choose the H511M-VDH M-ATX Motherboard?

• High Performance: Optimized for Intel 10th and 11th Gen processors with DDR4 support.
• Versatile Display Options: Multiple display ports for flexible monitor setup.
• Fast Storage and Connectivity: M.2 NVMe/SATA support and multiple USB 3.0 ports.
• Reliable Network and Expansion: Built-in Realtek LAN and PCIe slots for additional components.
• Compact and Efficient Design: M-ATX size with an optimized power supply system.

FAQ

1. Which processors are compatible with the H511M-VDH motherboard?

It supports Intel’s 10th and 11th generation LGA1200 processors, including Core i3, i5, i7, and i9 models.

2. How much RAM does this motherboard support?

It features two DDR4 slots with a maximum capacity of 64GB and supports dual-channel memory at 2133MHz.

3. Does this motherboard support M.2 SSDs?

Yes, it includes one M.2 NVMe/SATA dual-protocol slot, allowing you to install high-speed SSDs for improved performance.

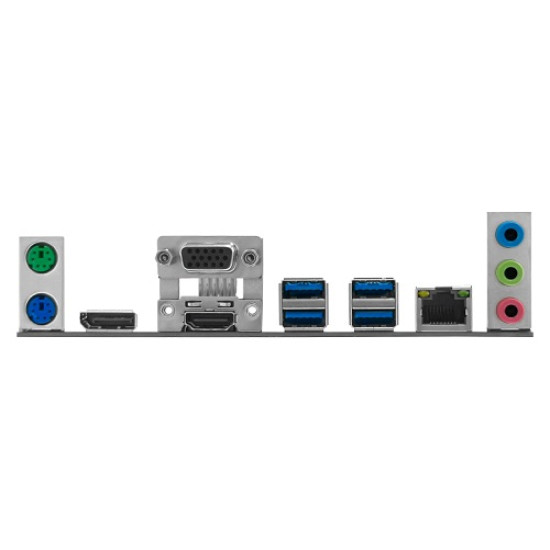

4. What display connections are available?

It has one HDMI port, one VGA port, and one DP port, making it compatible with multiple display setups.

5. How many USB ports does it have?

The motherboard includes four USB 3.0 rear ports, one front USB 3.0, and one front USB 2.0 port for seamless connectivity.

6. Does it support a dedicated graphics card?

Yes, it has one PCI Express X16 slot, allowing users to install a dedicated GPU for gaming and professional use.
